X-Pro 35000 BTU 4 Zone 22.5 SEER2 Concealed Ducted Mini Split AC-9K + 9K + 9K
X-Pro 35000 BTU 4 Zone 22.5 SEER2 Concealed Ducted Mini Split AC-9K + 9K + 9K
Item Number:
SKU:59356934_X-Pro-DC-35K-18
In stock
FREE Shipping
FREE Shipping
Free shipping on every order, direct to your door.
90-Day Warranty
90-Day Warranty
Items arrive damaged or defective can be returned within 90 days after the order is placed on our website. We ensure that all of our items are brand new and in excellent condition prior to shipping. In the event that you receive an item which does not conform to those standards, please contact us.
Couldn't load pickup availability
●Adjust temperature independently across 4 zones for optimal comfort
●Inverter technology maintains steadier temperatures with smarter energy use
●R454B refrigerant supports more responsible forward-looking operation
●Built-in versatility for every situation with 7 modes and 8 fan speeds
●Enjoy peaceful sleep without distractions with sleep mode and screen off function
●Effortless convenience with smart control options and wifi connectivity
●Chassis electrical heating ensures reliable performance in colder conditions
●Ideal for homes offices and light commercial spaces
●4D auto swing for balanced and even air distribution
●Ducted design keeps your space neat and discreet
●Self-clean function makes maintenance a breeze
●24-hour timer for set-and-forget scheduling
●Child lock helps prevent unwanted changes
● Multi-Zone Climate Control: This 35000 BTU concealed ducted mini split AC provides powerful and balanced heating and cooling across 4 zones. The outdoor unit features chassis electrical heating to ensure reliable operation in tough weather with -25℃ low ambient heating and 131℉ high ambient cooling.
●Significant Energy Savings: The advanced inverter technology maintains steady temperatures with less energy waste helping reduce cycling and improve comfort. With a 22.5 SEER2 rating and R454B refrigerant this multi zone split air conditioner and heat pump system is built for efficient year-round use.
● Multiple Control Options: This wifi enabled ducted mini split ac unit allows you to use the included remote wall thermostat smart app or voice commands for simple daily operation. It is compatible with Alexa and Google Assistant. The 24H timer allows for scheduled operation while the child lock keeps settings secure.
● All-season Companion: There are 7 modes for you to choose from: auto cool heat dry heat fan ECO sleep along with 8 fan speeds for precise comfort. The 4D auto swing improves room coverage while self-clean function helps keep air paths fresher over time.
● Quiet Operation & Wide Use: This multi-zone air conditioner and heater runs with low sound levels as low as 28 dB offering a peaceful environment for busy households and workplaces. It is ideal for household & light commercial use including living room bedroom office restaurant and more. Note: Professional installation is required.
| Color | White |
| Material | Cold-rolled Steel Sheet Copper Aluminum |

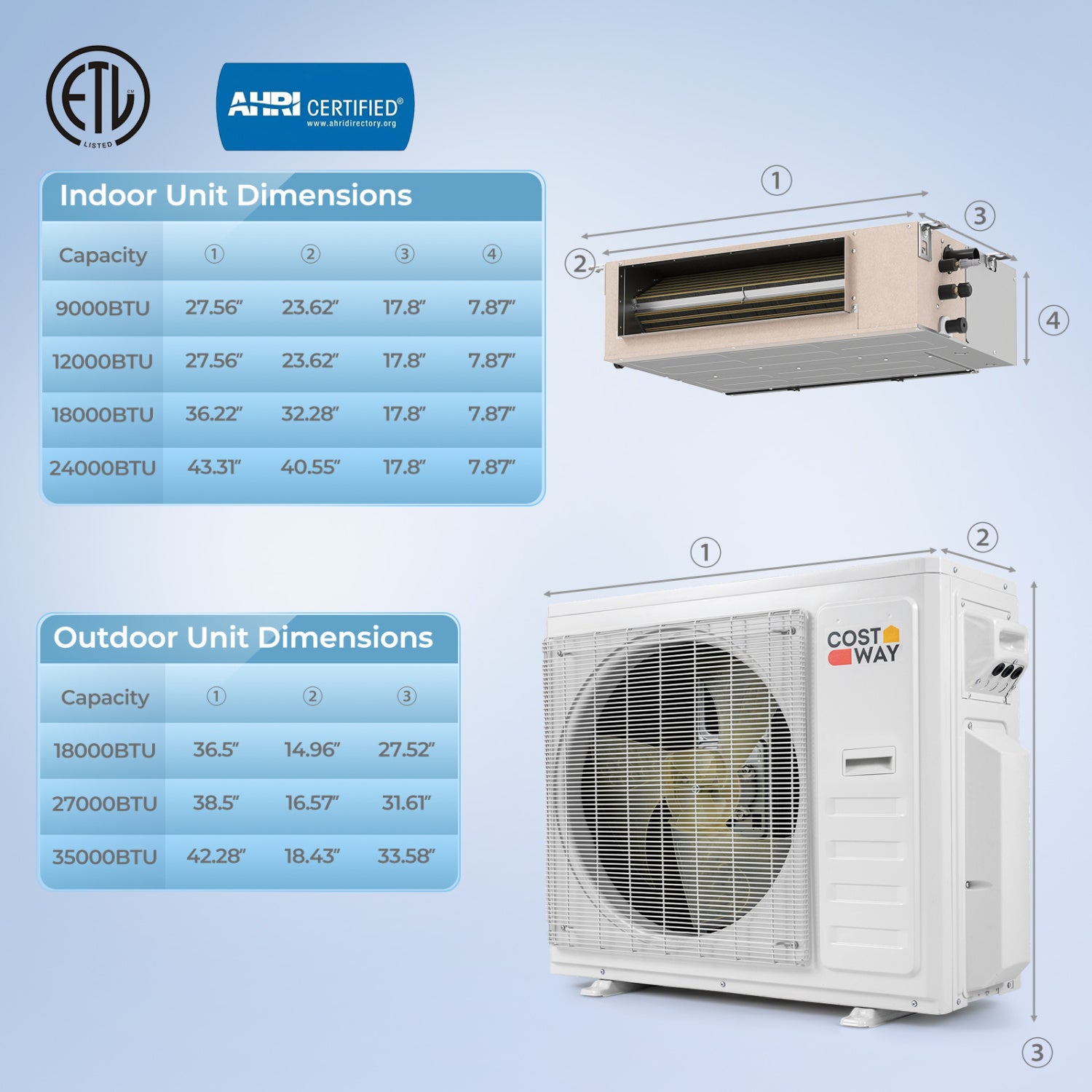

| Indoor Unit Dimensions | . |
| 9K | 27.56" x 17.8" x 7.87" |
| 12K | 27.56" x 17.8" x 7.87" |
| 18K | 36.22" x 17.8" x 7.87" |
| 24K | 43.31" x 17.8" x 7.87" |
| Outdoor Unit Dimensions | . |
| 18K | 36.5" x 14.96" x 27.52" |
| 27K | 38.5" x 16.57" x 31.61" |
| 35K | 42.28" x 18.43" x 33.58" |
| Multi Zone Combination | 4 |
| Voltage | 208-230V |
| Frequency | 60Hz |
| Temperature Setting Range | 60℉~88℉ |
| Refrigerant | R454B |
| Indoor Unit Noise Level | 28 dB |
| Max Remote Control Distance | 39.2 ft |
| Coverage Area-9K | 450 Sq.Ft |
| Coverage Area-12K | 750 Sq.Ft |
| Coverage Area-18K | 1250 Sq.Ft |
| Coverage Area-24K | 1500 Sq.Ft |
| Dehumidification Capacity-9K | 55.8 Pints/Day |
| Dehumidification Capacity-12K | 81.2 Pints/Day |
| Dehumidification Capacity-18K | 111.6 Pints/Day |
| Dehumidification Capacity-24K | 131.9 Pints/Day |
| Maximum Air Flow Volume-9K | 335 CFM/570 m³/h |
| Maximum Air Flow Volume-12K | 360 CFM/610 m³/h |
| Maximum Air Flow Volume-18K | 500 CFM/850 m³/h |
| Maximum Air Flow Volume-24K | 741 CFM/1260 m³/h |
| 18K SEER2 | 24 |
| 27K SEER2 | 24 |
| 35K SEER2 | 22.5 |
| 18K HSPF2 | 10.5 |
| 27K HSPF2 | 10.5 |
| 35K HSPF2 | 10 |
| Diameter of Liquid Pipe | 1/4" |
| Diameter of Gas Pipe-9K | 3/8" |
| Diameter of Gas Pipe-12K | 3/8" |
| Diameter of Gas Pipe-18K | 1/2" |
| Diameter of Gas Pipe-24K | 5/8" |
| Net Weight of 18K(Outdoor Unit) | 92.6 lbs |
| Net Weight of 27K | 119 lbs |
| Net Weight of 35K | 145.5 lbs |
| Net Weight of 9K | 33.1 lbs |
| Net Weight of 12K | 33.1 lbs |
| Net Weight of 18K(Indoor Unit) | 39.7 lbs |
| Net Weight of 24K | 50.7 lbs |

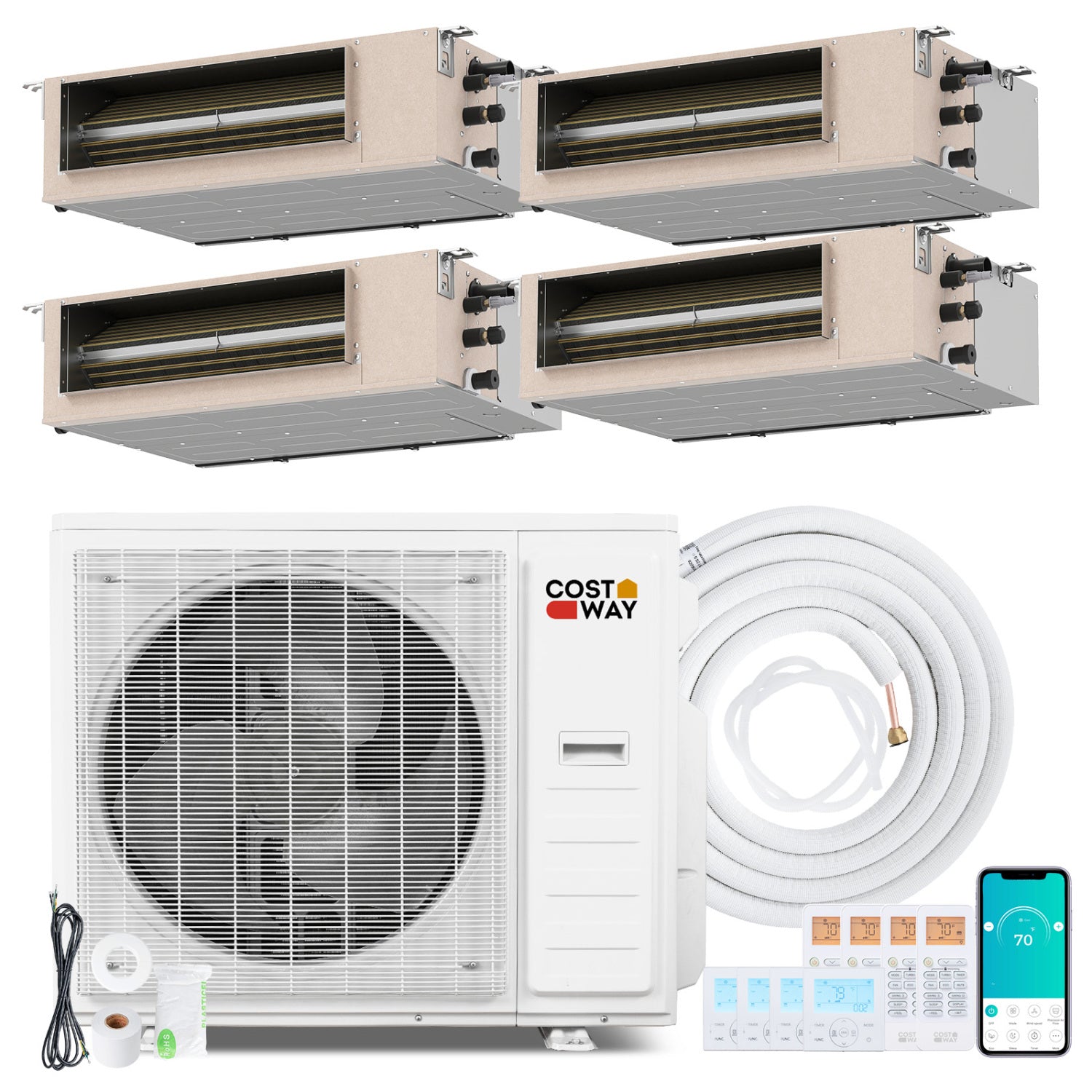

| Package Includes | 1 x Outdoor Unit 4 x Indoor Unit |
| 4 x Copper Connection Pipe - Gas Pipe | 4 x Copper Connection Pipe - Liquid Pipe |
| 4 x Communication Wire 4 x Drain Hose | 4 x Remote Control & Holder |
| 4 x Wall Sleeve 8 x Wall Cap | 8 x Tape 8 x Putty 4 x Screw Kit |
| 4 x Mounting Foot Pad | 9 x User Guide |
